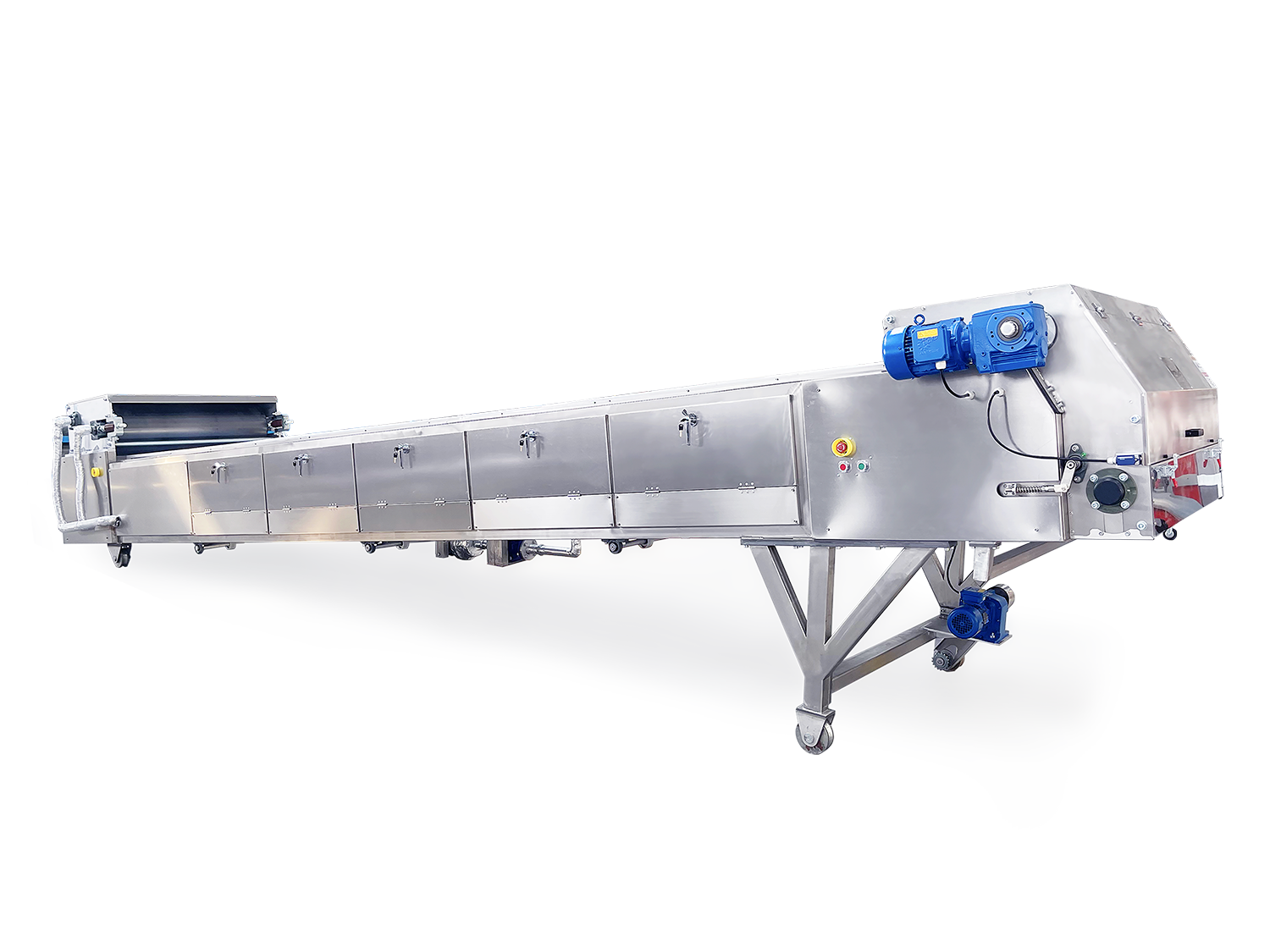

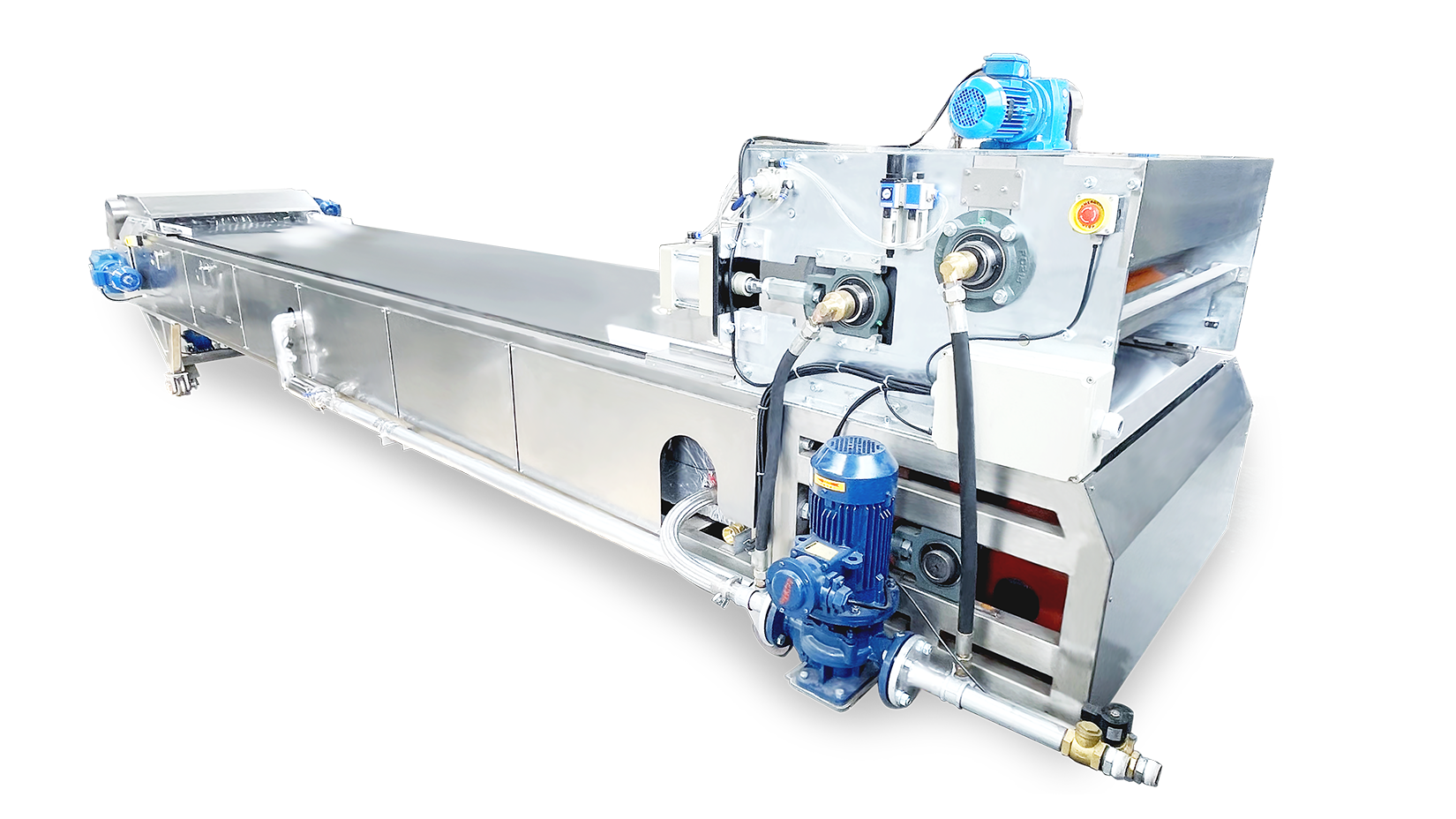

YPW Series Water Cooling Belt
Product Description

YPW steel belt cooler is composed of cooling rollers, stainless steel conveyor, crusher and cooling water spraying system. The cooling water spraying system is used to cool down stainless steel belt. The hot-melt materials from extruder are squeezed to thin sheet with thickness 1-2mm by cooling rollers, and being cooled down on the stainless steel conveyor to normal temperature, then being crushed into chips and discharged. This series of cooling belt can meet the output requirements from lab scale to utmost production, which makes it an ideal equipment for chips production.






High quality imported stainless steel belt, able to work

under dynamic tension and variable temperature in the long run

Adjustable thickness of chips and speed of roller,

homogeneous chip size
Material cooled by clean chilled water to avoid contamination
High productivity

Both sides of the frame are equipped with guyed emergency stop switches, the cooling roller is equipped with reverse rotation function

Comprehensive safety protection system
Easy to clean and maintain

Easy to clean and maintain

Cooling rollers can be adjusted by butterfly spring for effective protection

Noise: ≤ 70 dB

Main Technical Parameter

Model Belt Effective Length (mm) Belt Effective Width (mm) Output(kg/h) Main Power(kW) Dimension(mm)
YPW-526 2600 500 50-100 0.55-0.75 4000×1200×1600
YPW-640 4000 600 120-180 1.1-1.5 5000×1300×1600
YPW-850 5000 800 200-300 1.5-2.2 6000×1500×1800
YPW-1070 7000 1000 350-600 1.5-2.2 8000×1700×2000
YPW-1270 7000 1200 700-800 2.2-3.0 8000×1900×2000
YPW-1570 7000 1200 900-1000 3.0-5.5 8000×2100×2000
