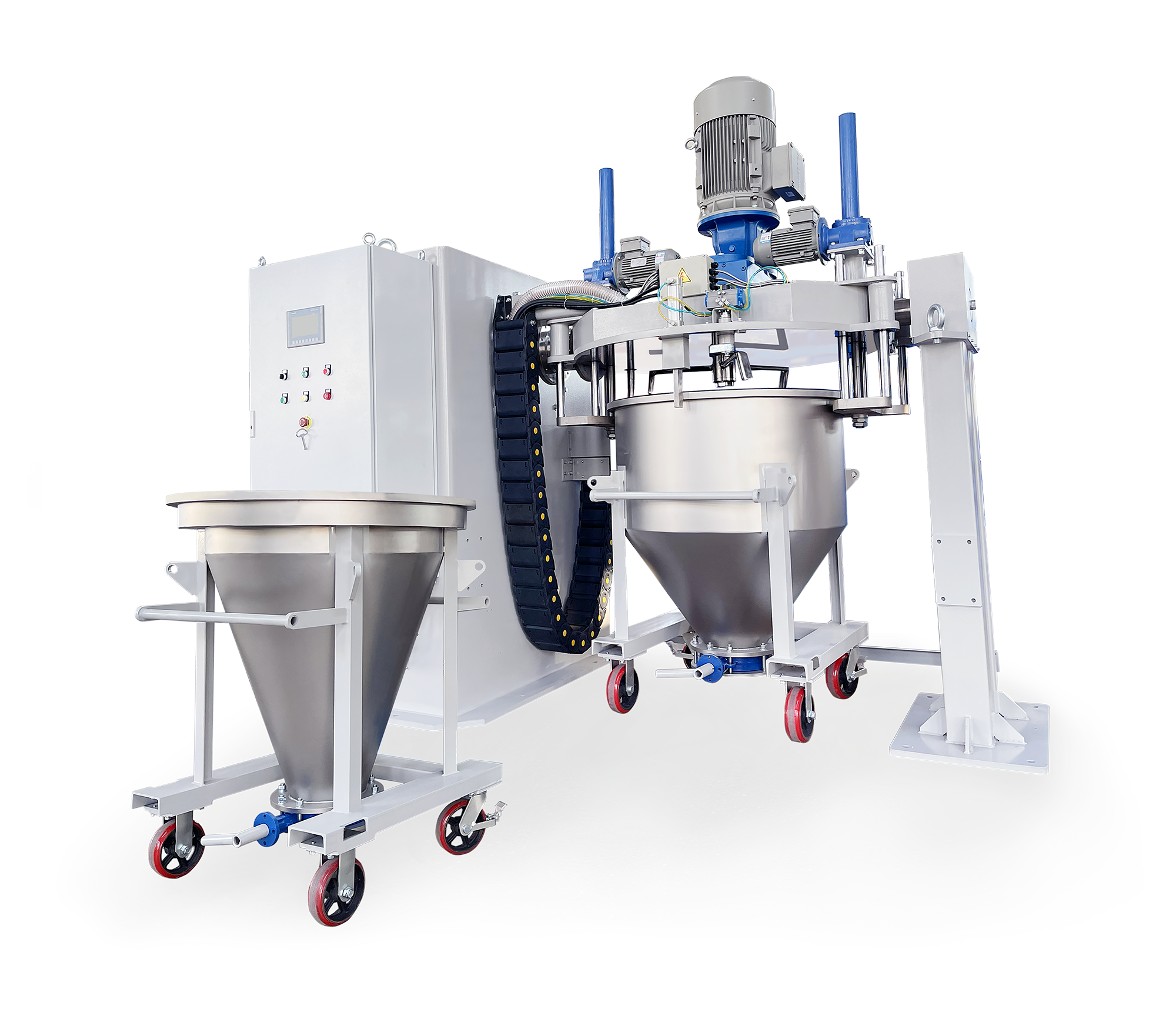

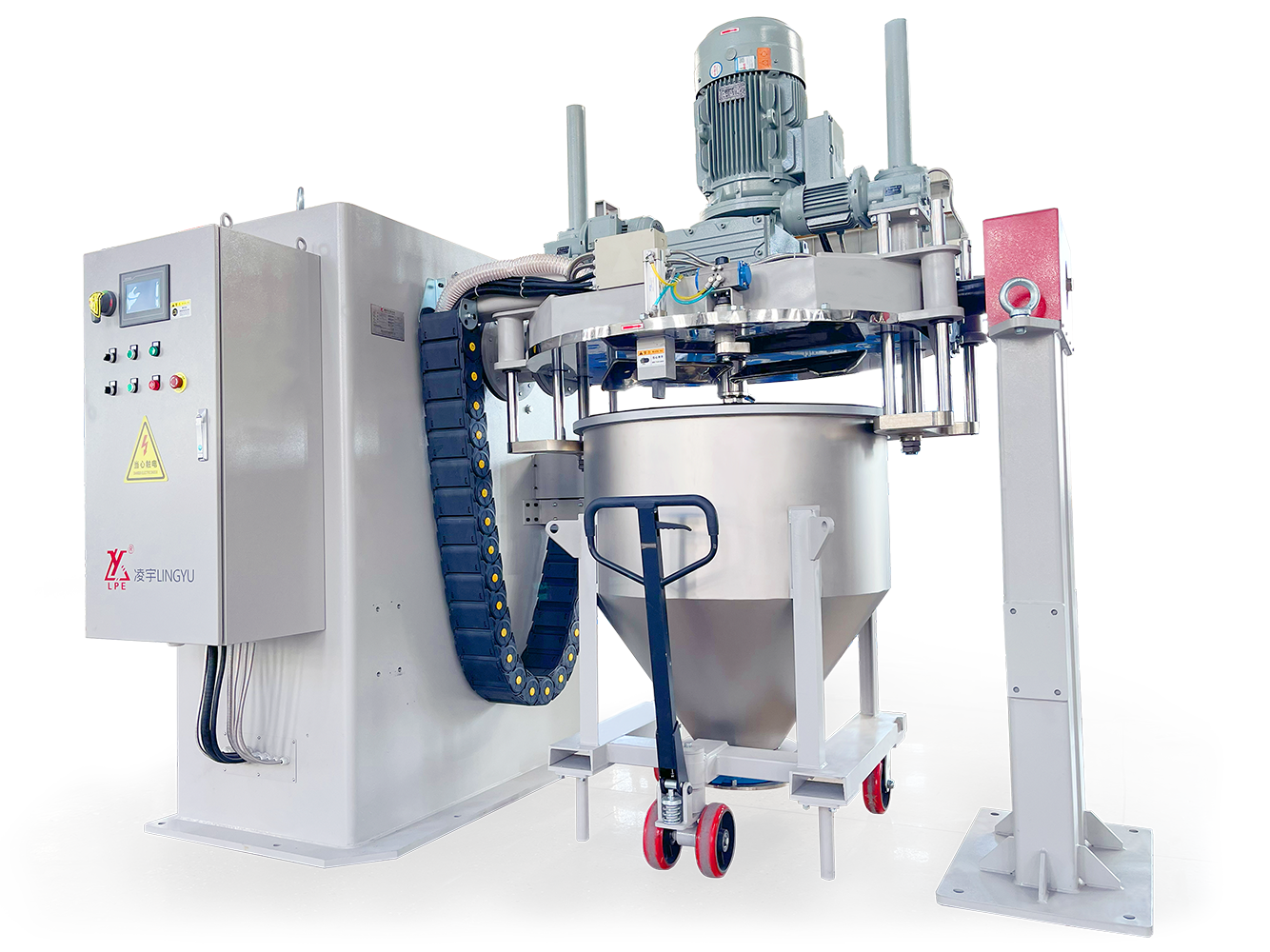

Lingyu LCM F Series mixer, the innovative design of the mixing tool combined with precise inverter speed control enables outstanding mixing homogenization and low temperature variance. Its fast cleaning functionality ensures the adaptability of the LCM mixers for a wide variety of applications.
Flat mixing head, one mixer
for different container sizes.
Reduced cleaning times,
suited for frequent recipe changes.
Automated Control: PLC and HMI provide precise, user-friendly operation.
Variable Frequency Control: Adapts to different mixing requirements for optimal performance.
Enhanced Sealing: Mechanical and airtight shaft seals prevent powder leakage.
Zero Dust Leakage: ntegrated industrial vacuum system ensures a clean working environment.
High Production Efficiency: Multi-container cyclic operation optimizes throughput.
Comprehensive Safety System: Designed for maximum reliability and operator protection.
| Model | Volume(L) | Mixer Motor(kW) | Rotator Motor(kW) | Lifting Motor(k | Dimension (L*W*H-mm) |
| LCM F-150 | 120 | 7.5/15 | 0.37 | 0.37*2 | 2300×1500×2600 |
| LCM F-300 | 240 | 15/22 | 0.75 | 0.37*2 | 2700×1650×2700 |
| LCM F-600 | 480 | 30/37 | 1.50 | 0.75*2 | 3100×2000×3200 |
| LCM F-1000 | 800 | 37/45 | 1.50 | 0.75*2 | 3300×2050×3600 |
Automatic Weighing System
Automated control, precise weighing
Automated carton recognition, fills in pre-set amount for the carton size
Vacuum system recycles escaping powder, minimising contamination
Only 1 operator needed, lowered production cost, high production efficiency
Lengths: 2m, 2.5m, 3m for your practical needs
